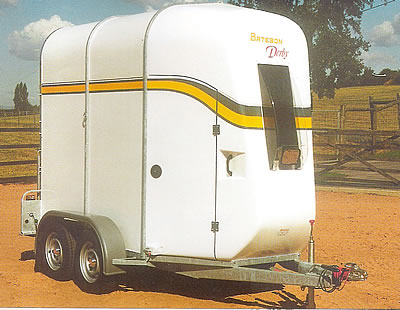

Derby Lightweight
The Derby is a modern rear unload horse trailer with 7' headroom. Its exceptionally low unladen weight makes it suitable for use behind saloon cars. The maximum gross weight is 1700kg but this can be reduced as required if used with only one horse. If the total weight of car trailer and load is less than 3500kg it can be used with the new standard car driver's licence.
The trailer is fitted with a large front window similar to the Deauville to be able to see the horses during transport and a rot proof plastic and galvanised steel floor for total security.
standard equipment comprises centre division, full front bar and half rear bars, internal spare wheel, rear door top cover, coupling mirror and hitch lock.
Specifications - Derby Lightweight |
| Dimension |
inches |
metres |
| Overall Width |
6' 8" |
2.04 |
| Overall Height |
8' 6" |
2.60 |
| Overall Length |
12' 8" |
3.86 |
| Internal Length |
8' 10" |
2.70 |
| Internal Height |
7' |
2.14 |
| Internal Width |
4' 11" |
1.50 |
| Stall Width |
2' 4" |
0.70 |
| Stall Length |
5' 11" |
1.80 |
| Weight |
kg |
| Maximum Gross Weight |
1700 |
| Unladen Weight * |
675 |
Dimensions and weights are approximate and given as a guide only.
|
