CARRIAGE TREKA

A purpose built tri-axle trailer designed to transport a carriage and two horses with optional overnight accommodation for the owner.

The 7 ft wide body with rear ramp enables two horses to load and travel comfortably in the diagonal position and the frontal area is sufficiently large enough to accommodate most sizes and styles of carriage.

After removal of the carriage, this area can become a comfortable living space which can be fitted with seating, sleeping and cooking facilities.

We appreciate that due to the variety of sizes and types of carriage, the dimensions and extras are a basic guide. We will, therefore, endeavour to accomodate special requests.

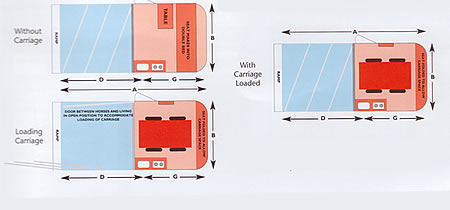

Layout :

EXTERNAL DIMENSIONS Body Area inches mm A LENGTH 16 ' 6" 5067 B WIDTH 7' 1" 2160 C HEIGHT 9' 6" 2934 INTERNAL DIMENSIONS Horse Area inches mm D LENGTH 8' 2 " 2489 E WIDTH 7' 0" 2135 F HEIGHT 7' 6" 2311 Living Area G LENGTH 8' 4" 2540 B WIDTH 7 ' 2135 I HEIGHT 7 ' 6" 2311 WEIGHT text Kilos UNLADEN WEIGHT From 1850 GROSS (max) 3500



Prices for Carriage Treka
	£ BasicPrice Ex- Works	£ VAT	£ Total Price
Carriage Treka	see price list
Optional Extras
Skylight Roof Vent			67.56
Electric Roof Extractor Fan			146.88
Extra Partition			176.25
Full Depth Partition			129.25
Padded Partition			116.91
Leisure Battery			205.62
Electric Water Supply			304.91
TV and DVD player			528.16
Seating/Bunks			381.88
Fold Down Table			76.37
Porta Potti			46.94
Kitchen Unit			411.25
Mirror			11.69
Curtains for Living			111.63
Two Coat Hooks			5.88
12v Socket			52.88
Camera Hand Held Monitor			199.75
Camera with 7" Monitor			223.23
Tracker			351.33
Wheel Clamp			97.47
Fire Extinguisher			23.44
Fire Blanket			13.95
First Aid Kit			18.98

Standard Model Features
Chassis	Strong galvanised steel chassis for long maintenance-free life.
Axles	Tri axle
Suspension	Independent suspensions for a comfortable ride
Wheels	Six fully braked wheels with low profile tyres and spare included.
Ball Hitch	Built-in lock including auto reverse.
Floor	Aluminium plank covered with heavy duty rubber.
Body	GRP body for long maintenance-free life, lined with kicking boards in the horse area
Large Front Locker	For gas bottles and extra locker storage
Colours	Standard two tone colours grey and white. Other colours available at extra cost.
Graphics	Graphics of your choice. Quotation on request.
Horse Area
Partition	Two Fully adjustable padded partition with head divider and rubber skirt to floor.
Ventilation	Five opening windows and skylight roof vent
Lighting	Two interior lights
Tie Rings	Two horse tie rings and two hay net tie rings. Two external tie rings.

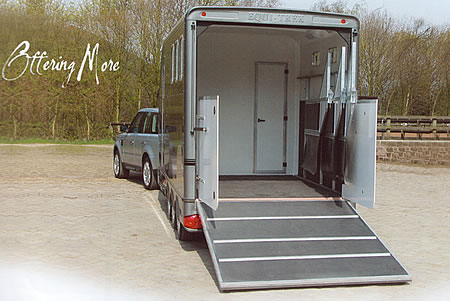

Ramp Doors	White easy clean safety loading doors.
Ramp	Large low sprung ramp with heavy duty rubber matting and alloy tread rails..
Opening Bulkhead door	between horse area and living area to accommodate loading of carriage.
Owners Area
On this model the living area is not fitted out except for cushion flooring, door, light, two opening and one fixed window.
