SHOW-TREKA

Show-Treka L

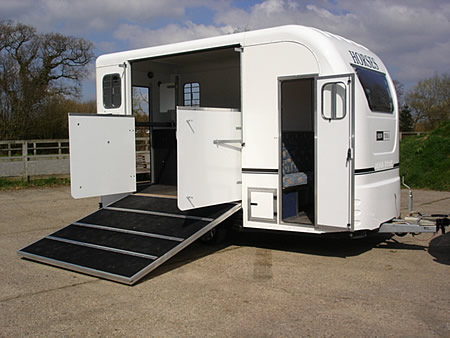

The stylish Show-Treka carries two horses and has a separate living area.

It comes complete with kitchen hob, sink, wardrobe, table and seating which converts into bunks, making it ideal for weekends away.

Storage for your tack is taken care of with the standard tack locker.

Available in two sizes Show-Treka 'M' to carry two horses up to 16.2 hands and Show Treka 'L' to carry two horses up to 18 hands.

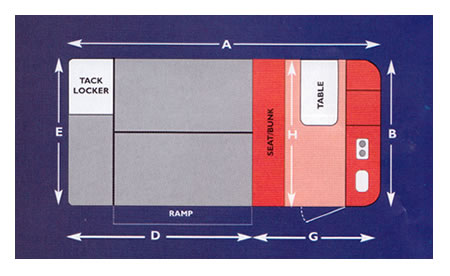

Layout :

MODEL 'M' - 2 horses up to 16.2 hh EXTERNAL DIMENSIONS Body Area inches mm A LENGTH 14 ' 4236 B WIDTH 6' 1" 1835 C HEIGHT 9' 1" 2770 INTERNAL DIMENSIONS Horse Area inches mm D LENGTH 8' 9" 2665 E WIDTH 6' 1810 F HEIGHT 7' 1" 2160 Living Area G LENGTH 5' 1500 H WIDTH 6' 1810 I HEIGHT 7' 9" 2270 WEIGHT text Kilos UNLADEN WEIGHT From 1280 GROSS (max) 2600

MODEL 'L' - 2 horses up to 17.3 hh EXTERNAL DIMENSIONS Body Area inches mm A LENGTH 15 ' 4570 B WIDTH 6' 7" 1985 C HEIGHT 9' 5" 2895 INTERNAL DIMENSIONS Horse Area inches mm D LENGTH 9' 8" 2960 E WIDTH 6' 6" 1960 F HEIGHT 7' 6" 2285 Living Area G LENGTH 5 ' 1500 B WIDTH 6' 6" 1960 I HEIGHT 8' 0 2465 WEIGHT text Kilos UNLADEN WEIGHT From 1400 GROSS (max) 3000



Prices for Show Treka
	£ BasicPrice Ex- Works	£ VAT	£ Total Price
Show-Treka - M (up to 16.2 hh)	see price list
Show-Treka - L (up to 17.3hh)	see price list
Optional Extras
Extra Vent Window			69.61
Large Front Window			334.87
Skylight Roof Vent			67.56
Electric Roof Extractor Fan			146.88
Storage Rack (each)			52.88
Grooms Locker			234.41
Breast Bar Solid to Floor			146.88
Leisure battery			205.62
Electrical water supply			299.62
Full depth partition			129.25
Padded partition			116.91
Horse shower			88.12
Fitted curtains			111.63
Leather upholstery			229.13
Mirror			11.69
Camera Hand Held Monitor			199.75
Camera with 7" Monitor			223.25
Tracker			351.33
Wheel Clamp			97.47
Porta Potti			46.94
Fire Extinguisher			23.44
Fire Blanket			13.95
First Aid Kit			18.98

Standard Model Features
Chassis	Strong galvanised steel chassis for long maintenance-free life.
Suspension	Twin axles with Independent suspensions for a safe comfortable ride
Wheels	Four fully braked wheels with low profile tyres. Spare wheel and brace included.
Ball Hitch	Built-in lock including auto reverse.
Floor	Aluminium plank covered with heavy duty rubber.
Body	GRP body for long maintenance-free life with composite rubber kick boards in horse area.
Colours	Standard colour - White. Any colour available at extra cost.
Custom Graphics	Graphics of your choice. Quotation on request.
Horse Area
Partition	Fully adjustable partition with rubber skirt to floor.
Breast Bar	Full width padded breast bar.
Ventilation	Two opening windows and dome roof vent.
Lighting	One interior light.
Tie Rings	Two horse tie rings and two hay net tie rings and two external tie rings.
Ramp	Easy lift spring assisted ramp with heavey duty ruuber matting, alloy tread rails and ramp doors.
Ramp Doors	White easy cliean safety loading doors.
Head divider	To seperate the horses heads whilst travelling
Rear tack locker	Courtesy light with two saddle and bridle racks.
Owners Area
Light	One interior light
Floor	Cushion flooring
Table	Fold away table.
Ventilation	Two opening windows and dome roof vent.

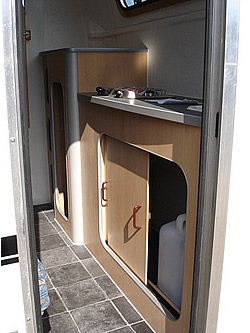

Kitchen	Includes twin gas hob, sink with manual pump and water carrier.
Seating	Comfortable seating that can be converted in to two bunk beds
Storage	Wardrobes, shelves and external locker for gas bottles.
