SPACE-TREKA

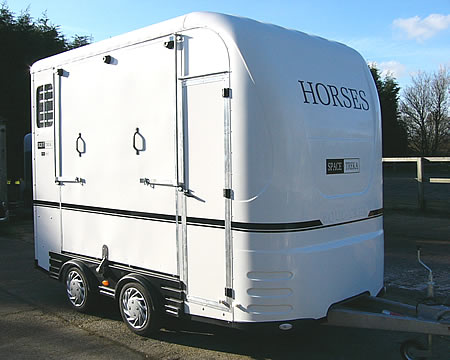

A brilliant self contained horse trailer designed to carry all the tack and equipment required for yourself and two horses whilst remaining compact and easy to tow.

The totally seperate Tack room and changing area is fitted with two saddle and bridle racks, coat hooks and ample room for your equipment. The added comfort and convenience, making show days so much more enjoyable. The Low Wide Side Ramp makes loading much easer and safer and the Rear Facing Travel is proven to be less stressful.

Available in two sizes:
Space Treka 'M'
to carry two horses up to 16.2 hands

Space Treka 'L'
To carry two horses up to 18 hands

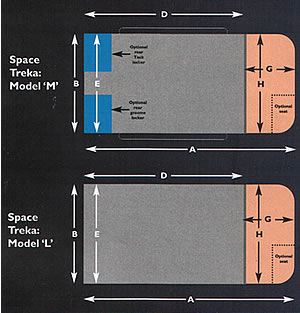

Layout :

MODEL 'M' - 2 horses up to 16.2 hh EXTERNAL DIMENSIONS Body Area inches mm A LENGTH 12ft 3in 3756 B WIDTH 6ft 1in 1835 C HEIGHT 9ft 1in 2756 INTERNAL DIMENSIONS Horse Area inches mm D LENGTH 8ft 9in 2665 E WIDTH 6ft 1810 F HEIGHT 7ft 1in 2160 Living Area G LENGTH 3ft 3in 1000 H WIDTH 6ft 1810 I HEIGHT 7ft 9in 2365 WEIGHT text Kilos UNLADEN WEIGHT From 1120 GROSS (max) 2500   MODEL 'L' - 2 horses up to 18 hh EXTERNAL DIMENSIONS Body Area inches mm A LENGTH 13ft 3in 4070 B WIDTH 6ft 7in 1985 C HEIGHT 9ft 6in 2895 INTERNAL DIMENSIONS Horse Area inches mm D LENGTH 9ft 8in 2960 E WIDTH 6ft 6in 1960 F HEIGHT 7ft 6in 2285 Living Area G LENGTH 3ft 3in 1000 B WIDTH 6ft 6in 1960 I HEIGHT 8ft 2465 WEIGHT text Kilos UNLADEN WEIGHT From 1250 GROSS (max) 2600



Prices for Space Treka
	£ BasicPrice Ex- Works	£ VAT	£ Total Price including VAT
Space-Treka - M (up to 16.2 hh)	see price list
Space-Treka - L (up to 18hh)	see price list
Optional Extras
Grooms Door Window			69.91
Living Door Window			69.91
Extra Vent Window			69.91
Large front window			334.87
Skylight Roof Vent			67.56
Electric Roof Extractor Fan			148.88
Head Board to separate horses heads			58.16
White easy cleaning loading doors			116.91
Rug rack extra storage in horse area			52.88
Tack Locker			234.41
Grooms Locker			234.41
Storage Rack (each)			52.88
Full depth partition			129.25
Padded partition			116.91
Breast Bar Solid To Floor			146.88
Corner Seat			88.12
Porta Poti			46.94
Mirror			11.69
Camera Hand Held Monitor			199.75
Camera with 7" Monitor			223.25
Reversing Camera			111.63
Tracker			351.33
Wheel Clamp			97.47
Kitchen Unit			351.33
Fire Blanket			13.95
First Aid Kit			18.98
Fire Extinguisher			23.44

Standard Model Features
Chassis	Strong galvanised steel chassis for long maintenance-free life.
Suspension	Twin axles with Independent suspensions for a safe comfortable ride
Wheels	Four fully braked wheels with low profile tyres. Spare wheel and brace included.
Ball Hitch	Built-in lock including auto reverse.
Floor	Aluminium plank covered with heavy duty rubber.
Body	GRP body for long maintenance-free life with composite rubber kick boards in horse area.
Colours	Standard colour - White. Any colour available at extra cost.
Custom Graphics	Graphics of your choice. Quotation on request.
Horse Area
Partition	Fully adjustable partition with rubber skirt to floor.
Breast Bar	Full width padded breast bar.
Ventilation	Three opening windows and dome roof vent.
Lighting	One interior light.
Tie Rings	Two horse tie rings and two hay net tie rings and two external tie rings.
Ramp	Easy lift spring assisted ramp with heavey duty ruuber matting, alloy tread rails and ramp doors.
Ramp Doors	Safety loading doors for easier loading
Tack / Changing Area
Light	One interior light
Floor	Cushion flooring
Tack Fittings	Two saddle and bridle racks and two coat hooks.
Ventilation	One opening window.
