The
Fautras Range:
Index
Options

The OBLIC + Range
3 models.
Horse trailers from 2 to 4 horses with diagonal transportation

Oblic+ 2, Oblic+ 3 and Oblic+ 4

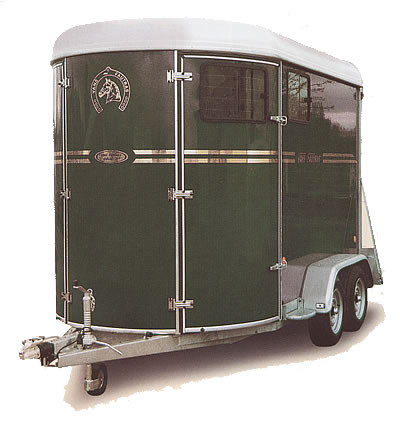

Oblic Plus 4

  • All glass-fibre trailer
  • Large front exit with ramp
  • Large tack storage area
  • 3 sliding windows with protective grilles
  • Side padding
  • Choice of 6 colours
  • Personalised trim
  • Polyetheylene rot proof floor
  • Large tack area at front offering large storage space
  • Easy access to the equipment thanks to large door
  • Easy access to horse area
  • Good ventilation at a standstill
  • Forward unloading of horses
  • Flexible pivoting head partition
  • FAUTRAS TECH partition (see below)
  • Comfortable padding.
  • Spare wheel with bracket (inside or outside)
  • Superior quality, non-slip matting over rot-proof floor.
  • Maintenance-free, independent wheel suspension.
  • Safety roll bars.
  • Internal and external tie rings.
  • Automatic jockey wheel.
  • Interior light
  • Integrated lockable ball hitch.

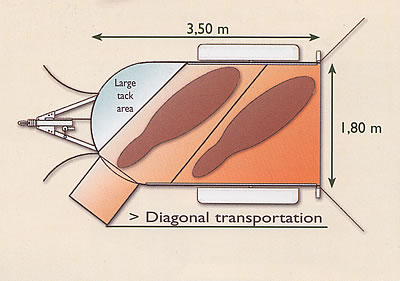

Diagonal Transportation

  • Diagonal transportation allows the horse to balance itself by spreading its hind legs
  • The horse comfortable handles any braking, turns, roundabouts...

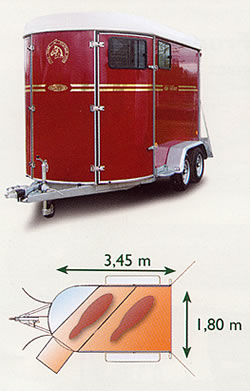

* there is an alternative forward facing option, image shown is for Oblic+ 2

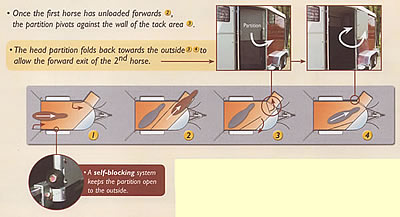

FAUTRAS TECH flexible pivoting partition

  • Horses no longer become stressed with the new flexible Fautras partition.
  • They no longer seek to push it away and no longer feel trapped.
  • Better able to stabilise themselves, they can comfortable handle turns and roundabouts.

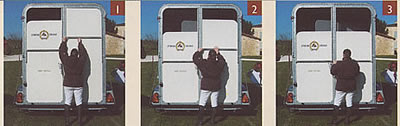

Ventilation Shutters adjustable in 3 positions

Specifications - Oblic+ 2
Dimension
inches
metres
Overall Width 7' 7" 2.30
Overall Height 8' 10" 2.68
Overall Length 15' 4" 4.66
Internal Length 11' 4" 3.45
Internal Height 7' 5" 2.25
Internal Width 5' 11" 1.80
Weight
kg
Maximum Gross Weight.
2500
Unladen Weight 1130
Dimensions and weights are approximate and given as a guide only.

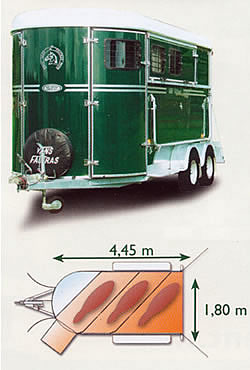

Specifications - Oblic+ 3
Dimension
inches
metres
Overall Width 7' 7" 2.30
Overall Height 8' 10" 2.68
Overall Length 18' 7" 5.66
Internal Length 14' 7" 4.45
Internal Height 7' 5" 2.25
Internal Width 5' 11" 1.80
Weight
kg
Maximum Gross Weight.
3000
Unladen Weight 1630
Dimensions and weights are approximate and given as a guide only.

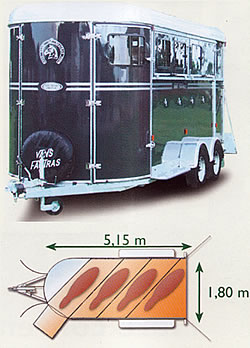

Specifications - Oblic+ 4
Dimension
inches
metres
Overall Width 7' 7" 2.30
Overall Height 9' 2.75
Overall Length 20' 10" 6.36
Internal Length 16' 11" 5.15
Internal Height 7' 5" 2.25
Internal Width 5' 11" 1.80
Weight
kg
Maximum Gross Weight.
3500
Unladen Weight 1800
Dimensions and weights are approximate and given as a guide only.

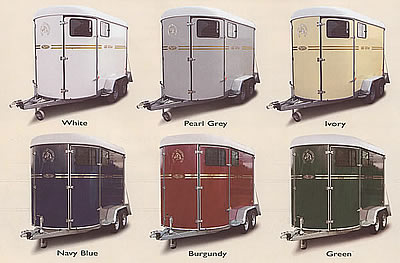

Choice of 6 colours




image gallery


Oblic+ 2


Oblic+ 3


Oblic+ 4
