Oblic 2 Range - 2 Models - Oblic 2 and Maxivan 2 horse trailers.
Download PDF






Modern Aerodynamic shape - large capacity

  • Polyester/carbon fibre body-lightweight and very strong
  • Hot-dip galvanised chassis and metallic parts (anti-corrosive)
  • Direct traction chassis give excellent road-holding and easy steering
  • Quick release breast bar system
  • 4 external handles
  • Jockey door in front with lockable catch
  • 4 wheels + spare wheel with fixing bracket
  • Inertia brake - E.E.C Approved auto reverse brakes
  • Independent maintenance-free suspension
  • Jockey wheel
  • Inside ligting
  • Two sliding windows (1000 * 400 mm) with interior protection grills
  • Two types of opening - American - 2 doors - sliding mini - ramp
  • Superior quality anti-slip floor covering
  • Rot-resistant floor in polypropolene petro plastic for easy maintenance and longevity
  • Adjustable rear shutters (3 positions) for good ventilation
  • Choice of 7 colours
  • 50 colour combinations possible
  • Personalised trim

  • All Polyester trailer
  • 2 sliding side windows
  • Large tack area
  • Personalised trim
  • Chocie of 7 colours

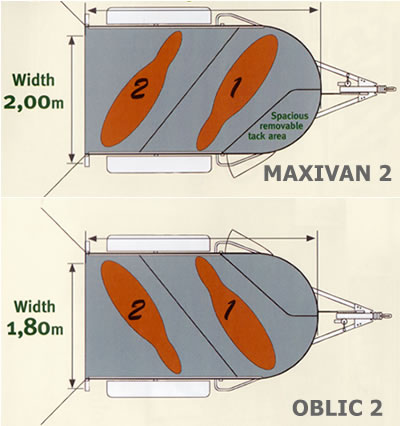

    The Oblic 2 and Maxivan 2 models allow the horses to be transported diagonaly, with their heads facings either forwards or backwards. As it is possible to turn the horses around inside the trailer, they can be unloaded forwards.



image gallery







tack locker


or revolving saddlestore
MODELS AND SIZES
RANGE
Unladen Weight
(kg)
Maximum
Mass
(kg)
LENGTH (metres)
WIDTH
(metres)
HEIGHT
(metres)
INT
EXT
INT
EXT
INT
EXT
OBLIC 2 1160 2500
3.50
4.50
1.80
2.35
2.25
2.68
MAXIVAN 2 1200 3500
3.50
4.60
2.00
2.55
2.30
2.73
