If you own a larger horse, such as the Hannoverian, Trakehner or large Ductch Breeds, you will recognise the difficulty of finding a suitably sized trailer.
The Beaufort Sixty is an extra large trailer, specially designed to transport two horses each weighing in excess of 700 kg, and standing 16.3hh and higher.
Larger horses are often uncomfortable in a standard trailer. The Beaufort Sixty has been designed to allow each horse to stand with its rear legs as far apart as possible, increasing your horses' comfort and safety.
Additional stylish features on the Beafort Sixty include stylised rubber ramp facings, to reduce slippage, and twin ramp assisters on the rear ramp, making ramp handling light and quick.
Large opening side windows increase light and visiblility for your horses and side vents improve their comfort on the move.
| Construction Specifications |
- Full height front and rear unload with integral ramp lifting aids
- Fully welded, hot dipped galvanized chassis
- Aluminium roof and profiled aluminium body panels
- GRP nose cone and dome door
- Heavy duty thermoplastic mudguards
- Doors above rear ramp (travel open or closed)
- Independent suspension complete with full width galvanized beam axles
- Braking system with auto reverse coupling
- Compliant low maintenance 12 volt lighting system
- One piece plastic floor guaranteed against rot and corrosion for life of trailer
|
| General Specifications |
- Plastic number plate holder
- Pourable water carrier frame and large plastic container
- Rear loading stands
- 2 pack acrylic paint system choice of 7 standard colours with many options
- Rubber floor and ramp mats
- Front air vent
- 2 side air vents
- Rotary roof vent
- Window, and large roof-light in nose cone
- 2 slide opening side windows
- interior light
- Removable swivel partition
- Removable head/bite guard
- Adjustable padded breast and breech bars
- Quick release breast bar brackets
- 4 internal tie rings
- Moulded partition and side padding
- Equine First Aid Kit

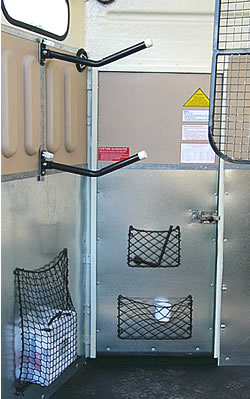

- 3 storage nets
- 2 saddle racks
- Wheel brace, wheel chock and holder
- Jockey wheel
- Spare wheel and cover with logo mounted on side
|
| Security |
- Datatag Security System
- Stainless steel lockable grroms door handles
- Locking coupling head
|
| Optional Extras |
See Prices / Optional Extras for details. |
|
|
Specifications - Rice Beaufort 60 |
| Dimension |
inches |
metres |
| Overall Width |
7' 6" |
2.30 |
| Overall Height |
9' 1" |
2.75 |
| Overall Length |
16' 5" |
5.00 |
| Internal Length |
11' 7" |
3.54 |
| Internal Height |
7' 6" |
2.31 |
| Internal Width |
5' 11 " |
1.80 |
| Stall Length (max) |
7' 4" |
2.24 |
| Weight |
kg |
| Maximum Gross Weight |
2700 |
| Unladen Weight |
1140 |
| Tyres - Size |
Pressue |
| 165/R/13/8ply |
65 PSI |
| Upgrade |
|
| Upgrade Gross weight to |
3200 |
| Tyre size to |
185/R/14/8ply |
Dimensions and weights are approximate and given as a guide only.
|
