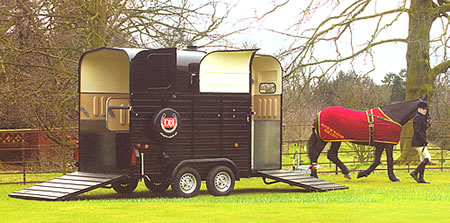

Rice: Beaufort Treble
The Beaufort Treble remains a design classic - a stylish, versatile three horse trailer. (Two large horses and one pony)
Its two and one loading arrangement maximises comfort and safety for you and your horses.
The innovative three horse partition allows you to close the front partition and move the split breast bars apart, giving better weight transfer over the axles, and ensuring the correct nose weight for safe towing. With two horses on board, you can use the room in front of the reast bar for transporting tack, a trap or feed.
Like the Beaufort Sixty, the Beaufort Treble has rubber ramp facings to improve safety, twin assisters to make rear ramp handing easy, plus large opening side windows and side vents.
The gross capacity of the Beaufort Treble is 2700 kg and can be increased to 3200 kg if required.
| Construction Specifications |
- Full height front and rear unload with integral ramp lifting aids
- Fully welded, hot dipped galvanized chassis
- Aluminium roof and profiled aluminium body panels
- GRP nose cone and dome door
- Heavy duty thermoplastic mudguards
- Doors above rear ramp (travel open or closed)
- Independent suspension complete with full width galvanized beam axles
- Braking system with auto reverse coupling
- Compliant low maintenance 12 volt lighting system
- One piece plastic floor guaranteed against rot and corrosion for life of trailer
|
| General Specifications |
- Plastic number plate holder
- Pourable water carrier frame and large plastic container
- Rear loading stands
- 2 pack acrylic paint system choice of 7 standard colours with many options
- Rubber floor and ramp mats
- Front air vent
- 2 side air vents
- Rotary roof vent
- Window, and large roof-light in nose cone
- 2 slide opening side windows
- interior light
- Removable swivel partition
- Removable head/bite guard
- Adjustable padded breast and breech bars
- Quick release breast bar brackets
- 4 internal tie rings
- Moulded partition and side padding
- Equine First Aid Kit
- Wheel brace, wheel chock and holder
- Jockey wheel
- Spare wheel and cover with logo mounted on side
|
| Security |
- Datatag Security System
- Stainless steel lockable grroms door handles
- Locking coupling head
|
| Optional Extras |
See Prices / Optional Extras for details. |
|
|
Specifications - Rice Beaufort Treble |
| Dimension |
inches |
metres |
| Overall Width |
7' 6" |
2.30 |
| Overall Height |
9' 1" |
2.75 |
| Overall Length |
17' 9" |
5.40 |
| Internal Length |
12' 5" |
3.79 |
| Internal Height |
7' 6" |
2.31 |
| Internal Width |
5' 11 " |
1.80 |
| Stall Length (max) |
7' |
2.13 |
| Weight |
kg |
| Maximum Gross Weight |
2700 |
| Unladen Weight |
1300 |
| Tyres - Size |
Pressue |
| 165/R/13/8ply |
65 PSI |
| Upgrade |
|
| Upgrade Gross weight to |
3200 kg |
| Tyre size to |
185/R/14/8ply |
Stall Length (max) to |
5' 10" |
1.77 m |
Dimensions and weights are approximate and given as a guide only.
|
