Rice: Equipoise

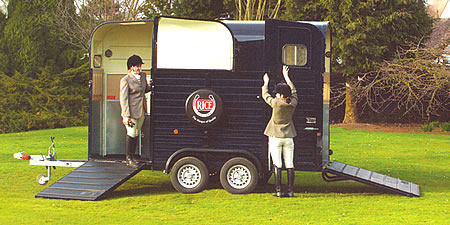

The Rice Equipoise trailer has been specially designed to enable horses to travel backwards during transport.
Loading is done from the front ramp, simply lead your horse up the front ramp, tie him up and exit through the groom's door or the open rear ramp.
The partition in the Equipoise can be removed and the partition wing at the front of the trailer can be moved from side to side assist loading. The wing on the rear partition is static and contains a substantial biting guard.
To improve comfort and reduce anxiety, there are large windows in the rear top doors and the rear third of the roof, maximising available daylight.
| Construction Specifications |
- Full height front and rear unload with integral ramp lifting aids
- Fully welded, hot dipped galvanized chassis
- Aluminium roof and profiled aluminium body panels
- GRP nose cone and dome door
- Heavy duty thermoplastic mudguards
- Doors above rear ramp (travel open or closed)
- Independent suspension complete with full width galvanized beam axles
- Braking system with auto reverse coupling
- Compliant low maintenance 12 volt lighting system
- One piece plastic floor guaranteed against rot and corrosion for life of trailer
|
| General Specifications |
- Plastic number plate holder
- Pourable water carrier frame and large plastic container
- Rear loading stands
- 2 pack acrylic paint system choice of 7 standard colours with many options
- Rubber floor and ramp mats
- Front air vent
- 2 side air vents
- Rotary roof vent
- Window, and large roof-light in nose cone
- 2 slide opening side windows
- interior light
- Removable swivel partition
- Removable head/bite guard
- Adjustable padded breast and breech bars
- Quick release breast bar brackets
- 4 internal tie rings
- Moulded partition and side padding
- Equine First Aid Kit
- 3 Storage nets
- 2 Saddle racks
- Wheel brace, wheel chock and holder
- Jockey wheel
- Spare wheel and cover with logo mounted on side
- Fixed windows in top rear doors
- 2 grooms doors (front and rear) with lockable stainless steel handles and additional shoot bolts
|
| Security |
- Datatag Security System
- Stainless steel lockable grroms door handles
- Locking coupling head
|
| Optional Extras |
See Prices / Optional Extras for details. |
|
|
Specifications - Rice Equipoise |
| Dimension |
inches |
metres |
| Overall Width |
7' 6" |
2.30 |
| Overall Height |
9' 1" |
2.75 |
| Overall Length |
17' 9" |
5.40 |
| Internal Length |
12' 5" |
3.79 |
| Internal Height |
7' 6" |
2.31 |
| Internal Width |
5' 11 " |
1.80 |
| Stall Length (max) |
7' |
2.13 |
| Weight |
kg |
| Maximum Gross Weight |
2700 |
| Unladen Weight |
1240 |
| Tyres - Size |
Pressue |
| 165/R/13/8ply |
65 PSI |
| Upgrade |
|
| Upgrade Gross weight to |
3200 |
| Tyre size to |
185/R/14/8ply |
Dimensions and weights are approximate and given as a guide only.
|
|
|
|
|
