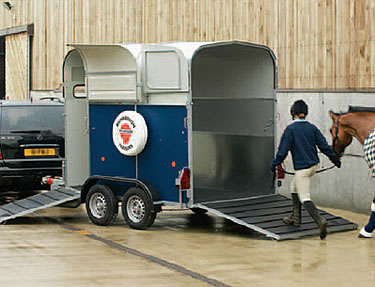

The Advance is a popular, modern front and rear unload horse trailer. Its spacious interior means it can carry two horses in the 16hh category, with a combined maximum weight of 1360 kg.
Thoughtful design provides comfort and style, and loading is easy with top doors offering full height access. The rear top doors coordinate with the roof panels, adding style to this contemporary trailer.
As with all trailers in the Supreme range, a spare wheel and cover, mounted on the side of the trailer, are standard. Also, the groom's door on the Advance is lockable.
| Construction Specifications |
- Full height front and rear unload
- Fully welded, hot dipped galvanized chassis and framework
- Resin coated pre coloured body panels
- Plastic coated roof sheets
- GRP nose cone and dome door
- Heavy duty thermoplastic mudguards
- Independent suspension complete with full width galvanized beam axles
- Braking system with auto reverse coupling
- Compliant low maintenance 12 volt lighting system
- Doors above rear ramp (travel open or closed)
- One piece plastic floor guaranteed against rot and corrosion for life of trailer
|
| General Specifications |
- Front air vent
- Window, and roof-light in nose cone
- Interior light
- Rubber floor and ramp mats
- Removable swivel partition
- Adjustable padded breast and breech bars
- Quick release breast bar brackets
- Internal tie rings
- Partition and side padding
- Jockey wheel
- Spare wheel and cover with logo - mounted on side
|
| Security |
- Locking coupling head
- Lockable grooms door handle
|
| Optional Extras |
See Prices / Optional Extras for details. |
|
|
Specifications - Supreme Advance |
| Dimension |
inches |
metres |
| Overall Width |
7' 2 " |
2.18 |
| Overall Height |
8' 9 " |
2.66 |
| Overall Length |
14' 7" |
4.45 |
| Internal Length |
10' 7 |
3.23 |
| Internal Height |
7' |
2.13 |
| Internal Width |
5' 6 " |
1.68 |
| Stall Length (max) |
6' 4 " |
1.94 |
| Weight |
kg |
| Maximum Gross Weight |
2300 |
| Unladen Weight |
940 |
| Tyres - Size |
|
| 165/R/13/8ply |
|
Dimensions and weights are approximate and given as a guide only.
|
