The
Richardson
Range:
Index

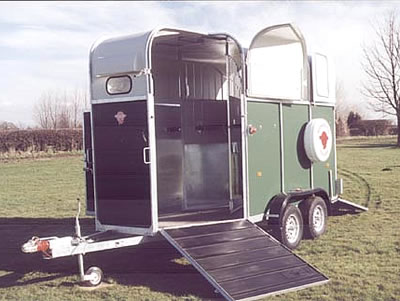

Richardson: Supreme Treble


The Treble is ideal for two horses and a pony. The horses travel forwards and the pony travels backwards.

The front partition wings can easily be closed, and with two horses the front breast bar is moved forwards. The bar can be split, to release one horse at a time, making unloading simpler and safer.

If you have just two horses, the extra space can be used for storage, a trap, or tack.

As with all trailers in the Supreme range, a spare wheel cover, mounted on the side of the trailer, is standard. Also, the groom's door on the Treble is lockable.


Construction Specifications
  • Full height front and rear unload
  • Fully welded, hot dipped galvanized chassis and framework
  • Resin coated pre coloured body panels
  • Plastic coated roof sheets
  • GRP nose cone and dome door
  • Heavy duty thermoplastic mudguards
  • Doors above rear ramp (travel open or closed)
  • Independent suspension complete with full width galvanized beam axles
  • Braking system with auto reverse coupling
  • Compliant low maintenance 12 volt lighting system
  • One piece plastic floor guaranteed against rot and corrosion for life of trailer
General Specifications
  • Front air vent
  • Window, and roof-light in nose cone
  • Interior light
  • Rubber floor and ramp mats
  • Removable swivel partition
  • Adjustable padded breast bar brackets
  • Quick release breast bar brackets
  • Internal tie rings
  • Partitition and side padding
  • Removable swivel partition with flexible configuration to carry 2 horses + 1 pony or easily adapted for 2 large horses
  • Jockey Wheel
  • Spare wheel and cover with logo - mounted on side
Security
  • Lockable grooms door handles
  • Locking coupling head
Optional Extras

See Prices / Optional Extras for details.


Specifications - Supreme Treble
Dimension
inches
metres
Overall Width 7' 6 " 2.30
Overall Height 9' 1 " 2.75
Overall Length 17' 9 " 5.40
Internal Length 12' 5" 3.79
Internal Height 7' 8" 2.33
Internal Width 5' 11 " 1.80
Stall Length (max) check check
Weight
kg
Maximum Gross Weight
2700
Unladen Weight
1260
Tyres - Size
165/R/13/8ply
Upgrade to
Gross Weight to 3200
Stall Length (max) check
Tyre size to 185/R/14/8ply
Dimensions and weights are approximate and given as a guide only.
