The
Wessex
Range:
Index
prices / specs
Wessex Clubman
image gallery




Clubman and Olympian differ in their size and capacity

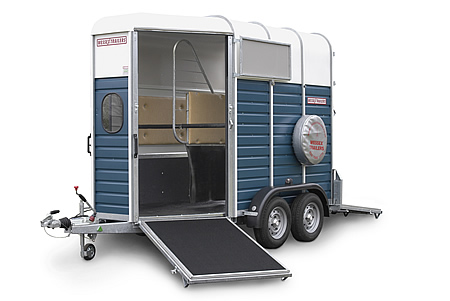

Wessex Clubman, 2 x 16.2hh horses.


The Wessex Clubman & Olympian are traditionally designed front and rear unload horse trailers employing up to date quality materials and components. Standard specification includes gas assisted front and rear loading ramps, locking grooms door, easily removable swinging central partitions, fitted internal rubber matting, hinged front and rear flaps, spare wheel and carrier, together with a lockit and cappit security device. In fact all the features a discerning owner would require.

Main Features

  • Fully Galvanised chassis and framework
  • GRP Roof cone incorporating translucent centre panel and air vent
  • Plastisol ribbed side panels and roof
  • Polycarbonate front window
  • 25mm Permaplas rot and corrosion resistant floor with fitted rubber mat
  • Internal side kick panels
  • Adjustable rear breach bars and panic release breast bar
  • Centre swinging partition with front and rear padded panels
  • Internal and external tie rings and brackets
  • Single operation opening on front and rear ramps complete with gas assistors
  • Front and rear hinged flaps
  • Locking grooms side door
  • Avonride galvanised full beam softride axle
  • Bradley coupling with posilite lower effort brake lever
  • Bradley lockit and cappit security device
  • Spare wheel and carrier fitted
  • Flexible thermoplastic mudguards
  • Commercial quality lamp units
  • Interior light
  • Data tag security

Optional Extras

  • Full width breast bar
  • Additional fixed or sliding windows
    (fixed side windows standard on Olympian)



Specifications - Clubman
Dimension
inches
metres
Overall Width 7' 1" 2.16
Overall Height 8' 6" 2.60
Overall Length 13' 5" 4.10
Internal Length 10' 2" 3.10
Internal Height 7' 1" 2.16
Internal Width 5' 5" 1.65
Weight
kg
Maximum Gross Weight 2600
Unladen Weight
895
Tyres - Size
165/R/13/8PR
Dimensions and weights are approximate and given as a guide only.
