The
Pegasus
Range:
Index
Prices
Pegasus Huntsman and Equestrian


Huntsman and Equestrian differ in their size and capacity

Huntsman 2 x 16.2 hh horses
Equestrain
2 * 17.2 hh horses

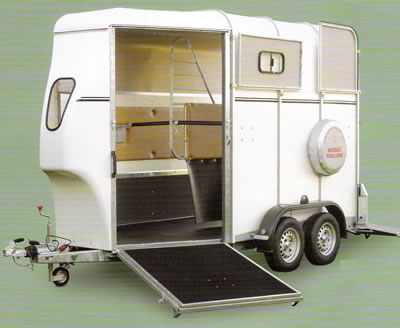

The Huntsman & Equestrian are modern front and rear unload horse trailers employing up to date quality materials and components. Standard specification includes lockable gas assisted front and rear loading ramps, locking grooms door, easily removable swinging central partitions, fitted internal rubber matting, hinged front and rear flaps, side windows, spare wheel and carrier, together with a lockit and cappit security device. In fact all the features a discerning owner would require.

Main Features

  • Fully Galvanised chassis and framework
  • GRP Roof cone incorporating translucent centre panel and air vent
  • High gloss GRP laminated side panels and Plastisol roof
  • Polycarbonate front window and sliding side windows
  • 25mm Permaplas rot and corrosion resistant floor with fitted rubber mat
  • Internal side kick panels
  • Adjustable rear breach bars and panic release breast bar
  • Centre swinging partition with front and rear padded panels
  • Internal and external tie rings and brackets
  • Single operation opening on front and rear ramps complete with gas assistors
  • Front and rear hinged flaps
  • Locking grooms side door
  • Avonride galvanised full beam softride axle
  • Bradley coupling with posilite lower effort brake lever
  • Bradley lockit and cappit security device
  • Spare wheel and carrier fitted
  • Flexible thermoplastic mudguards
  • Commercial quality lamp units
  • Interior light
  • Data tag security

Optional Extras

  • Full width breast bar
Specifications - Huntsman
Dimension
inches
metres
Overall Width 7' 1" 2.16
Overall Height 8' 6" 2.60
Overall Length 13' 5" 4.10
Internal Length 9' 10" 3.01
Internal Height 7' 1" 2.16
Internal Width 5' 5" 1.65
Weight
kg
Maximum Gross Weight
2600
Unladen Weight *
905
Dimensions and weights are approximate and given as a guide only.





















Specifications - Equestrian
Dimension
inches
metres
Overall Width 7' 7" 2.30
Overall Height 9' 1" 2.76
Overall Length 15' 2" 4.62
Internal Length 11' 5" 3.47
Internal Height 7' 5" 2.26
Internal Width 5' 11" 1.80
Weight
kg
Maximum Gross Weight
2600
Unladen Weight *
1030
Dimensions and weights are approximate and given as a guide only.
