Gold Magnum (Polyester Body)
Alongside the Gold X Line (Resin coated ply sides) , and Gold Aluline (Aluminium) - the Gold Magnum is part of the Gold Series double horse trailers from Cheval liberte.
With a study and durable construction, the Gold Series has a host of features to maximize versatility. By listening carefully to our customers and taking their concerns seriously, we have developed a trailer that does the job exceptionally well whilst being easy to operate and tow. Features like the automatically retracting jockey wheel, the automatic roller system on the rear cover and breast bar quick release system are examples of this.
Dimensions
Specifications - Gold Magnum |
| Dimension |
inches
(approx)
|
metres |
| Overall Width |
7' |
2.14 |
| Overall Height |
8' 11" |
2.72 |
| Overall Length |
14' 8" |
4.47 |
| Internal Length |
10' 6" |
3.21 |
| Internal Height |
7' 7" |
2.30 |
| Internal Width |
5' 5" |
1.65 |
| Weight |
kg |
| Maximum Gross Weight |
2000 |
| Unladen Weight * |
860 |
Dimensions and weights are approximate and given as a guide only.
|
Key Features
- Additional interior space - an impressive 3.21m long, 1.65m wide and 2.30m headroom
- Extra large front unloading ramp opening at 1 metre wide by 2 metres high
- Pullman suspension system - excellent ride comfort and stability
- "Easy-Quick" ramp/doors - front and rear
- Aluminium floor
- Anti-skid rubber matting on ramps
- Two front windows
- Roof vent
Protection and comfort of the horse

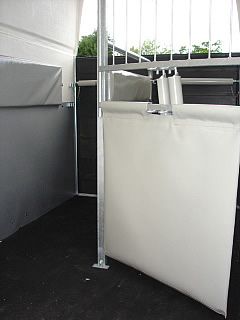

- Quick-release breast bars
- Breast bars and breach bars adjustable in height and length, with safety pins
- Side cushions
- Two exterior tie rings
- Two interior tie rings

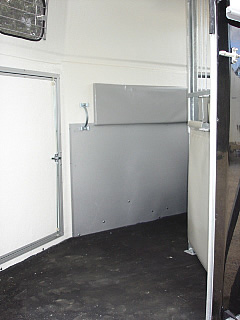

- Interior side kick panels
- Protective grills for windows
Floor
- Aluminium for high strength and durability
- Anti-slip rubber mat glued to the floor
- Easy maintenance
Roof
- Aerodynamically shaped moulded polyester
- Integral reinforcing members
- Excellent heat insulation
- Rear cover with automatic roller for easy, tidy operation
- Two opening side windows
- Opening roof light
Sides
Loading facilities

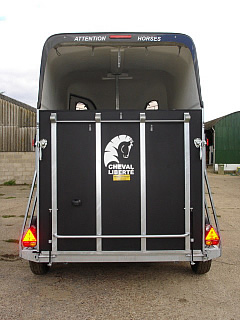

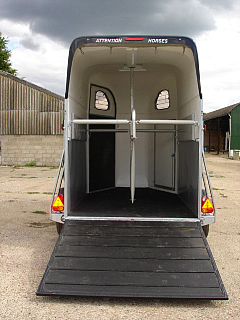

- Rear loading / unloading ramp with gas-filled assistor for easy operation
- Front unloading ramp
- The ramp(s) can also be opened as a door
- Straightforward and secure latches
Rider's Access Door
- Wide opening
- Single latch, lockable with key
Ventilation
- Large opening roof light
- Opening side windows with protective grills
Axles, suspension and braking system
Coupling Unit
- Automatic reversing system
- EC Approved
- Manufacturer: Either French: RTN 49 Noyant France or German: Knott TUV
Axles
- EC Approved
- Pullman suspension System
Brakes
- EC Approved
- Inertia-operated brakes
- Manufacturer: Either French: RTN 49 Noyant France or German: Knott TUV
|
|
