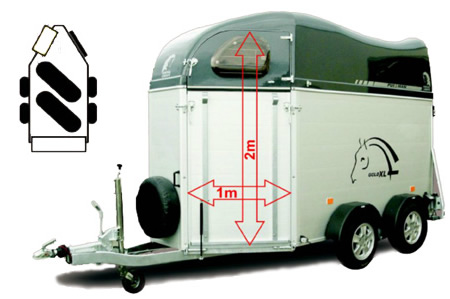

Gold XL Diagonal
Diagaonal based 2 horse trailer with optional aluminium sides.
Dimensions
Specifications - Gold XL Diagonal |
| Dimension |
inches
(approx)
|
metres |
| Overall Width |
7' 6" |
2.29 |
| Overall Height |
8' 11" |
2.72 |
| Overall Length |
16' |
4.88 |
| Internal Length |
12' |
3.60 |
| Internal Height |
7' 7" |
2.30 |
| Internal Width |
5' 11" |
1.80 |
| Weight |
kg |
| Maximum Gross Weight |
1800-2600 |
| Unladen Weight * |
980 |
Dimensions and weights are approximate and given as a guide only.
|
Features
Protection and comfort of the horse
- Side cushions
- Two exterior tie rings
- Two interior tie rings
- Interior side kick panels
- Protective grills for windows
Floor
- Aluminium for high strength and durability
- Anti-slip rubber mat glued to the floor
- Easy maintenance
Roof
- Aerodynamically shaped moulded polyester
- Integral reinforcing members
- Excellent heat insulation
- Rear cover with automatic roller for easy, tidy operation
- Two opening side windows
- Opening roof light
Sides
- 18mm thick composite - rigid, abrasion-resistant and durable (Aluminium optional)
Loading facilities
- Rear loading / unloading ramp with gas-filled assistor for easy operation
- Front unloading ramp
- The ramp(s) can also be opened as a door
- Straightforward and secure latches
Rider's Access Door
- Wide opening
- Single latch, lockable with key
Ventilation
- Large opening roof light
- Opening side windows with protective grills
Axles, suspension and braking system
Coupling Unit
- Automatic reversing system
- EC Approved
- Manufacturer: Either French: RTN 49 Noyant France or German: Knott TUV
Axles
- EC Approved
- Pullman V2 Suspension system, reducing floor height by 100mm
Brakes
- EC Approved
- Inertia-operated brakes
- Manufacturer: Either French: RTN 49 Noyant France or German: Knott TUV
|
|
