Cheval Liberte  Range:
Index
Prices

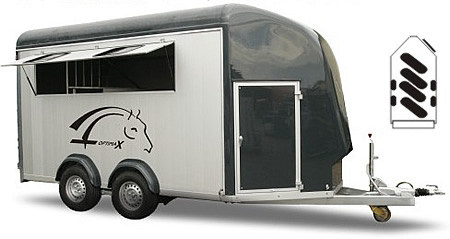

Optimax Pullman V2



4 horse trailer

Dimensions

Specifications - Optimax Pullman V2
Dimension
inches
(approx)
metres
Overall Width 7' 7" 2.30
Overall Height 9' 3" 2.81
Overall Length 19' 12" 6.09
Internal Length 16' 1" 4.90
Internal Height 7' 7" 2.30
Internal Width 6' 9" 2.07
Weight
kg
Maximum Gross Weight 2800-3500
Unladen Weight * 1450
Dimensions and weights are approximate and given as a guide only.




Features

Protection and comfort of the horse

  • Quick-release breast bars
  • Breast bars and breach bars adjustable in height and length, with safety pins
  • Side cushions
  • Interior tie ring
  • Interior side kick panels
  • Large side opening light with two windows
  • Protective grills for windows


Floor

  • Aluminium for high strength and durability
  • Anti-slip rubber mat glued to the floor
  • Easy maintenance


Roof

  • Aerodynamically shaped moulded polyester
  • Integral reinforcing members
  • Excellent heat insulation
  • Rear cover with automatic roller for easy, tidy operation
  • Two Opening side windows
  • Opening roof light


Sides

  • Aluminium


Loading facilities

  • Rear loading / unloading ramp with gas-filled assistor for easy operation
  • Front unloading ramp
  • The ramp can also be opened as a door
  • Straightforward and secure latches


Rider's Access Door

  • Wide opening
  • Single latch, lockable with key


Ventilation

  • Large opening roof light
  • Opening side windows with protective grills



Axles, suspension and braking system

Coupling Unit

  • Automatic reversing system
  • EC Approved
  • Manufacturer: Either French: RTN 49 Noyant France or German: Knott TUV

Axles

  • EC Approved
  • Pullman V2 Suspension system, reducing floor height by 100mm

Brakes

  • EC Approved
  • Inertia-operated brakes
  • Manufacturer: Either French: RTN 49 Noyant France or German: Knott TUV
