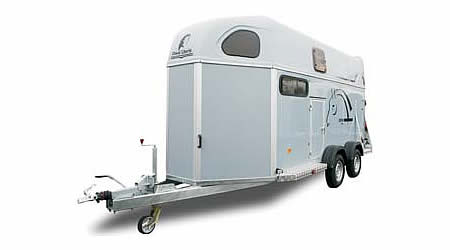

Living - Two large horses with living
The 'Living' trailer has been designed to transport two large horses and has the additional benefit of having a spacious area at the front for use as a changing room, for eating or relaxing and as a tack storage area.
Some of the standard features:
- A large tack locker with space for two saddles.
- A large access door to the living area
- An inspection door giving access to the horses
- Polyester roof with roof vent in horse accommodation area
- Slide-opening side window with protection grill
- Cover above rear ramp incorporating an automatic roller shutter system
- Centre partition with head partition
- Adjustable breast bars, breech bars
- Aluminium floor with glued rubber matting
- Ramp / van door system with anti-skid rubber ramp matting
- Advanced Pullman axle and suspension system, exclusive to Cheval Liberte
- Optional polyester tailgate

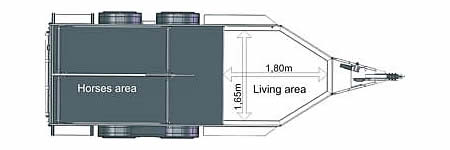

Dimensions
Specifications - Living |
| Dimension |
inches
(approx)
|
metres |
| Overall Width |
7' |
2.14 |
| Overall Height |
8' 11" |
2.72 |
| Overall Length |
15' 5" |
4.70 |
| Internal Length - Horses aera |
9' 5" |
2.88 |
| Internal Length - Living area |
5' 11" |
1.81 |
| Internal Height |
7' 5" |
2.26 |
| Internal Width |
5' 6" |
1.67 |
| Weight |
kg |
| Maximum Gross Weight |
2500 |
| Unladen Weight * |
1070 |
Dimensions and weights are approximate and given as a guide only.
|
Features
Protection and comfort of the horse
- Quick-release breast bars
- Breast bars and breach bars adjustable in height and length, with safety pins
- Side cushion
- Two interior tie rings
- Interior side kick panels
- Protective grills for windows
Floor
- Aluminium for high strength and durability
- Anti-slip rubber mat glued to the floor
- Easy maintenance
Roof
- Aerodynamically shaped moulded polyester
- Integral reinforcing members
- Excellent heat insulation
- Rear cover with automatic roller for easy, tidy operation
- Opening side windows
- Opening roof light
Sides
- 18mm thick composite - rigid, abrasion-resistant and durable
Loading facilities
- Rear loading / unloading ramp with gas-filled assistor for easy operation
- The ramp can also be opened as a door
- Straightforward and secure latches
Platform for carriage
- Aluminium 2m x 1.7m
- Two loading ramps for easy loading of the carriages
Rider's Access Door
- Three separate doors
- Wide opening
- Single latch, lockable with key
Ventilation
- Large opening roof light
- Opening side windows with protective grills
Axles, suspension and braking system
Coupling Unit
- Automatic reversing system
- EC Approved
- Manufacturer: Either French: RTN 49 Noyant France or German: Knott TUV
Axles
- EC Approved
- Knott system with metallo rubber independent suspension
Brakes
- EC Approved
- Inertia-operated brakes
- Manufacturer: Either French: RTN 49 Noyant France or German: Knott TUV
|
|
