USED TRAILERS :

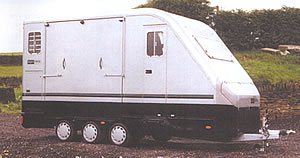

THE EQUI-TREK STAR-TREKA THREE STAR MODEL



Standard Model Features
Chassis: Strong galvanised steel chassis for long maintenance-free life.
Axles: Tri-axle for exceptional stability.
Suspension: Rubber suspensions for a quiet comfortable ride.
Wheels: Six wheels - six brakes for extra safety.
Ball Hitch: Built-in lock including auto reverse
Floor: Aluminium plank covered with heavy duty rubber in horse area.
Body: GRP body for long maintenance-free life. Attractive strong internal lining with composite rubber kicking boards and two external tie rings.
Colours: Standard colour - White.
Power: Power for this model is supplied by the towing vehicle.
Horse Area
Partition: Fully adjustable partition with rubber skirt to floor.
Ventilation: Three opening windows.
Lighting: Interior light.
Tie Rings: Two horse tie rings and two hay net tie rings.
Locker: Large front locker for extra storage
Doors: Grooms door at rear.
Ramp: Large low sprung ramp with heavy duty rubber matting and alloy tread
rails and doors
Breast Bar: One piece adjustable heavy duty breast bar.
Living Area
On this model the living area is not fitted out except for cushion flooring, light, door with
step and three opening windows. This is to facilitate owners who wish to fit it out to their
own specifications.

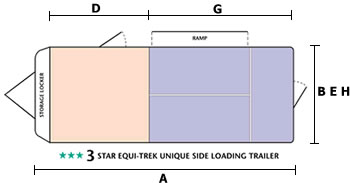

EXTERNAL DIMENSIONS
Body Area
inches
mm
A LENGTH
198
5029
B WIDTH
77
1956
C HEIGHT
113
2870
INTERNAL DIMENSIONS
Horse Area
inches
mm
D LENGTH
114
2897
E WIDTH
77
1956
F HEIGHT
88.5
2248
Living Area
G LENGTH
80
2032
H WIDTH
77
1956
I HEIGHT
88.5
2248
WEIGHT
text
Kilos
UNLADEN WEIGHT
From 1750
GROSS (max)
3500
