USED TRAILERS :

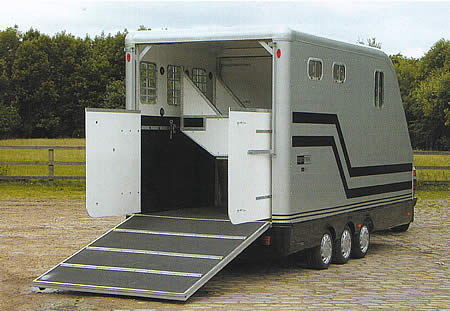

THE EQUITREK MULTI-TREKA 5 STAR


This luxury trailer if fitted to a very high standard with insulated walls, oak doors, wall cupboards etc. in living area and padded partitions, grooms locker, horse shower etc., in the horse area. This horse trailer offers everything for the comfort of horses and owner.

Designed to easily carry up to three of four ponies with separate living area. The 7ft wide body enables the horses to turn with ease and offers plenty of room with the fully adjustable diagonal partitions for comfortable travel.

The low wide rear ramp and light spacious interior encourages even the most reluctant traveller.

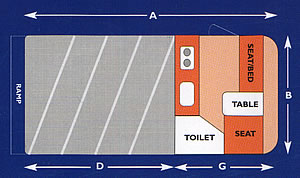

Layout :










EXTERNAL DIMENSIONS
Body Area
inches
mm
A LENGTH
194
4828
B WIDTH
84
2134
C HEIGHT
113
2870
INTERNAL DIMENSIONS
Horse Area
inches
mm
D LENGTH
114
2897
B WIDTH
84
2134
C HEIGHT
88.5
2248
Living Area
G LENGTH
80
2032
B WIDTH
84
2134
I HEIGHT
88.5
2248
WEIGHT
text
Kilos
UNLADEN WEIGHT
From 1900
GROSS (max)
3500


Standard Model Features
Chassis Strong galvanised steel chassis for long maintenance-free life.
Axles Tri-axle for exceptional stability.
Suspension Rubber suspensions for a quiet comfortable ride.
Wheels Six wheels - six brakes for extra safety.
Ball Hitch Built-in lock including auto reverse.
Floor Aluminium plank covered with heavy duty rubber in horse area.
Body GRP body for long maintenance-free life. Attractive strong internal
lining with composite rubber kicking boards. Two external tie rings.
Colours Standard colour - White. Any colour available at extra cost.
Power Power is supplied by its own leisure battery, providing independent power when not attached to the towing vehicle.
Lockers Large front locker for extra storage

Horse Area
Partitions Two fully adjustable partitions with rubber skirt to floor.
Ventilation Five opening windows.
Lighting Two interior lights
Tie Rings Three horse tie rings and three hay net tie rings. Two external tie rings
Locker Grooms locker with horse shower and tack locker with two saddle and bridle racks
Ramp Large low sprung ramp with heavy duty rubber matting and
alloy tread rails and doors.
Living Area
Seating Seating for 4 people with storage beneath. Matching upholsery and curtains.
Sleeping Sleeping for two people in living area with provision for hammocks for two further people in horse area.
Table Drop down table
Sink Sink with electric water supply from under floor 70 litre water tank with external lockable filler
Cooking Two hob gas cooker with grill
Cupboards Base and wall cupboards with oak doors for ample storage
Lighting Two internal lights
Ventilation Three opening windows
Battery Leisure battery providing independent power
Toilet area Compartment with coat hooks
