ARCHIVE : HB505 Double Horse Trailer
DISCONTINUED AUTUMN 2008

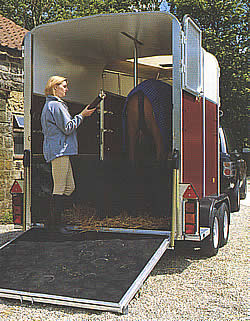

Ifor Williams most popular model, the HB505 will carry two horses of up to 16.2hh. It is no coincidence that this model is seen at countless horse shows throughout the country. Fifty thousand trailers have been produced since the original model was launched, and it is the most popular horse trailer in the UK and much of Europe.

Designed with horse safety and comfort in mind, the side-by-side stalls are ideal for transporting two medium sized horses.

Standard Equipment

  • Galvanized chassis and framework
  • Heat-reflecting aluminium roof
  • GRP front roof cone
  • Front vent, roof vent and louvre vents in rear doors
  • Toughened glass window
  • Aluminium floor
  • One piece rubber floor matting
  • Composite body panels with aluminium skin
  • Front and rear ramps with assistors
  • Door above front and rear ramps
  • Groom's door
  • Ifor Williams beam axle system
  • Spare wheel with cover
  • Breast bars and breeching bars
  • Side padding
  • Centre partition with separate padded front and rear panels
  • Lockable low profile coupling head
  • Datatag security system
Optional

  • PropStands
  • Head Partition
  • Wheel Chocks
  • Tack pack


Specifications - HB505
Dimension
inches
metres
Overall Width 6' 11" 2.10
Overall Height 8' 7" 2.62
Overall Length 14' 1" 4.30
Internal Length (ramp to tapered front) 10' 3.05
Internal Height 7' 1" 2.17
Internal Width (no partition ) 5' 4" 1.62
Stall Width 2' 7" 0.80
Stall Length (min/max) 4'10"/6'1" 1.47 / 1.85
Breast/Breeching Bar Height (min / max) 3'8"/4'4" 1.11 / 1.32
Weight
kg
Maximum Gross Weight
2340
Unladen Weight *
905
Dimensions and weights are approximate and given as a guide only.
* the unladen weight guide includes the many accessories included as standard with the Ifor Williams trailers.
