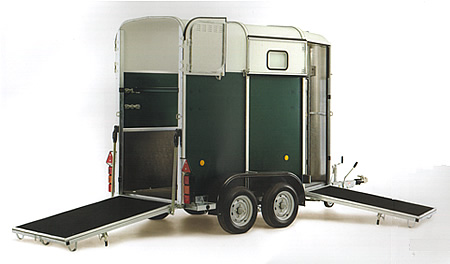

HB401 Single Horse Trailer

The single horse model,The HB401, is wider than most available, allowing plenty of room for a 16.2hh horse. Identical in every aspect of comfort and build to its larger stable mates, the 401 is designed to carry a single horse in comfort and safety.

Suitable for towing behind many larger family cars, it boasts a tapered, aerodynamic front section to offer less drag and better fuel economy for the towing vehicle. A big advantage when travelling long distances.

This single horsebox makes no compromise on width, and provides a wide and inviting stall. This ensures the trailer has excellent stability on the road, with plenty of room for the horse to travel in comfort. The additional space also makes loading and unloading much easier.

The trailer is fitted with full width breast and breeching bars as standard and is not offered with centre partition kit.

Standard Equipment

  • Galvanized chassis and framework
  • Heat-reflecting aluminium roof
  • GRP front roof cone
  • Front vent, roof vent and louvre vents in rear doors
  • Toughened glass window
  • Aluminium floor
  • One piece rubber floor matting
  • Composite body panels with aluminium skin
  • Front and rear ramps with assistors
  • Door above front and rear ramps
  • Groom's door
  • Ifor Williams beam axle system
  • Spare wheel with cover
  • Breast bars and breeching bars
  • Side padding
  • Lockable low profile coupling head
  • Datatag security system

Optional Extras

  • Breast bars and breeching bars
  • Side padding

Specifications - HB401
Dimension
inches
metres
Overall Width
5' 9"
1.75m
Overall Height
8' 7"
2.62m
Overall Length
14' 1"
4.30m
Internal Length (ramp to tapered front)
9' 10"
3.00m
Internal Height 7' 2.14m
Internal Width (no partition)
4'
1.21m
Stall Width
3' 11"
1.20m
Stall Length (min/max)
4' 10"/ 6' 1"
1.47/1.85m
Breast/Breeching Bar Height (min/max)
3' 8" / 4' 4"
1.11/1.32m
Weight
kg
Maximum Gross Weight
1600
Unladen Weight *
770
Dimensions and weights are approximate and given as a guide only.
* the unladen weight guide includes the many accessories included as standard with the Ifor Williams trailers.
