Ifor-Williams Range:
Index
Prices
Features
Options
NEW Range Info

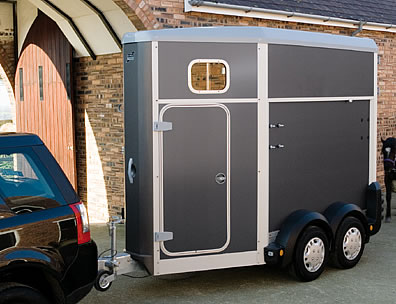

HB403 - Single Horse Trailer

HB403 Single Horsebox. As a single horsebox, the HB403 provides more stall width than our double horsebox models and offers enough headroom to take one 16.2hh horse.

Being a narrower trailer, the HB403 is easier to tow and produces less wind resistance when towing. The HB403 is ideal for transporting nervous horses that require a wider stall and may prefer to travel alone.

A 4x4 may not be necessary to tow the HB403 (depending on vehicle's towing capacity) and also provides towing options for drivers without the B+E category on their driving licence

see all the features, options and accessories of this new range.

Specifications - HB403
Dimension
inches
metres
Overall Width 5' 8" 1.73
Overall Height 8' 10" 2.70
Overall Length 14' 3" 4.36
Internal Length 10' 1" 3.08
Internal Height 7' 3" 2.20
Internal Width 4' 3" 1.30
Stall Width 4' 3" 1.30
Stall Length (min/max) 4' 10"/6' 1" 1.48 / 1.86
Breast/Breeching Bar Height
(min / max)
3'8"/4'4" 1.11 / 1.32
Weight
kg
Maximum Gross Weight
1600
Unladen Weight
767
Tyres 155R13C
