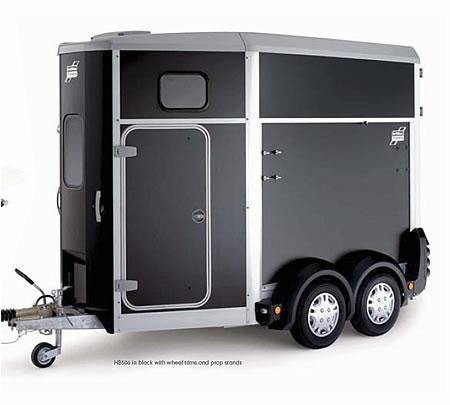

HB506 - 2 horse trailer
![](images/Ifor-williams/hb506/standard_450.jpg)

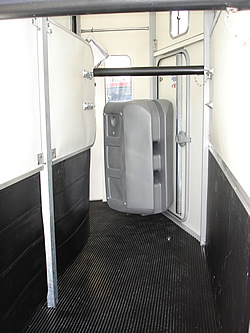

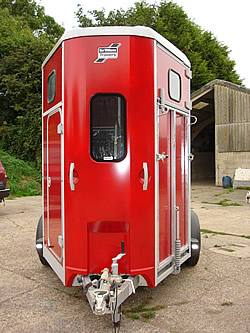

The HB506 model is suitable for two horses up to 17.2hh. HB506 models feature a pair of side windows and a larger front inspection window, allowing more daylight into the trailer. Centre partitions and breast & breeching bars are fitted as standard
see all the features, options and accessories of this new range.
Specifications - HB506 |
Dimension |
inches |
metres |
Overall Width |
6' 11" |
2.10 |
Overall Height |
9' |
2.75 |
Overall Length |
14' 1" |
4.30 |
Internal Length |
10' 4" |
3.16 |
Internal Height |
7' 5" |
2.26 |
Internal Width |
5' 6" |
1.67 |
Stall Width |
2' 9" |
0.83 |
Stall Length (min/max) |
4' 10" / 6' 1" |
1.48 / 1.86 |
Breast/Breeching Bar Height
(min / max) |
3'8"/4'4" |
1.11 / 1.32 |
Weight |
kg |
Maximum Gross Weight |
2600 |
Unladen Weight |
920 |
Tyres |
165R13C |
