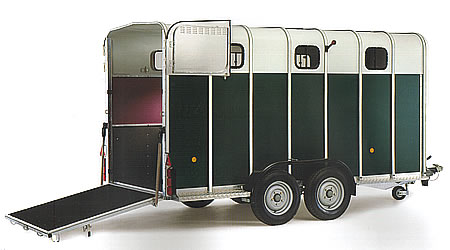

HB510XL - up to 4 ponies
The HB510XL offers the flexibility of carrying two horses up to 17.2 hands or up to four ponies. The HB510XL now comes with a higher headroom of 2.3m and a locking groom’s door as standard.
The HB510XL is also available as a 10’ model, which can take two horses.

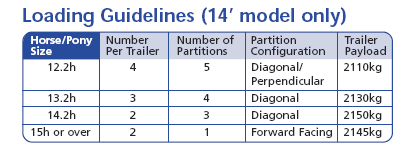

This model has the option of either a single centre partition, allowing two horses to face forward, or a range of telescopic partitions where up to four ponies can be carried diagonally*. The telescopic partitions can be configured to accommodate the widths of the ponies†.
A comfortable and safe environment for the horse is created through ample sliding windows and optional roof vents, ensuring plenty of light and fresh air. The thick rubber matting on the floor helps to minimise travel fatigue on long journeys.
Whether you are a livery yard, trekking centre, riding school or private individual with a string of ponies, this trailer, with a maximum gross weight of 3500kg, makes an ideal workhorse.
Additional options available on the HB510XL include van doors and a larger wind deflector, which offers additional storage space, accessed from within the trailer.
*14’ model only
†Animals must not be carried adjacent to the groom’s door under
Specifications - HB510XL - 10' |
| Dimension |
inches |
metres |
| Overall Width |
7' 7" |
2.30 |
| Overall Height |
9' 3" |
2.82 |
| Overall Length |
14' 9" |
4.50 |
| Internal Length (ramp to tapered front) |
9' 10" |
3.00 |
| Internal Height |
7' 7" |
2.30 |
| Internal Width (no partition ) |
5' 9" |
1.76 |
| Stall Width |
various |
various |
| Stall Length (min/max) |
various |
various |
| Breast/Breeching Bar Height (min / max) |
N/A |
N/A |
| Weight |
kg |
| Maximum Gross Weight |
3500 |
| Unladen Weight * |
1172 |
Dimensions and weights are approximate and given as a guide only.
* the unladen weight guide includes the many accessories included as standard with the Ifor Williams trailers. |
Specifications - HB510XL - 14' |
| Dimension |
inches |
metres |
| Overall Width |
7' 7" |
2.30 |
| Overall Height |
9' 3" |
2.82 |
| Overall Length |
18' 11" |
5.76 |
| Internal Length (ramp to tapered front) |
13' 11" |
4.25 |
| Internal Height |
7' 7" |
2.30 |
| Internal Width (no partition ) |
5' 8 1/2" |
1.74 |
| Stall Width |
various |
various |
| Stall Length (min/max) |
various |
various |
| Breast/Breeching Bar Height (min / max) |
N/A |
N/A |
| Weight |
kg |
| Maximum Gross Weight |
3500 |
| Unladen Weight * |
1290 |
Dimensions and weights are approximate and given as a guide only.
* the unladen weight guide includes the many accessories included as standard with the Ifor Williams trailers. |
|
|
