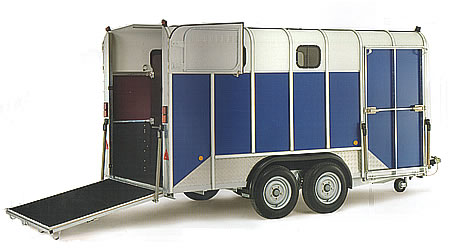

HB610

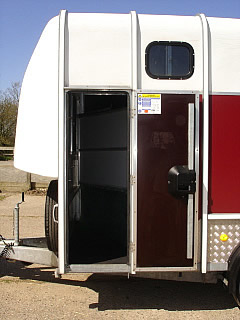

The HB610 represents Ifor Williams largest trailer and can carry two large horses up to 17.2 hands † with room to spare or up to five ponies. Recently updated on this model is a locking groom’s door fitted as standard and an increased headroom of 2.3m.

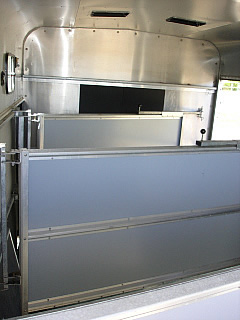

As with the HB510XL, the HB610 has a maximum gross weight of 3500kg. However, by offering additional trailer width, the telescopic partition system allows up to five pony stalls*.
The wide front unload † ramp, which comes as standard, makes this model unique and very useful for both horse and owner. An additional benefit is the extra storage space available in the wind deflector, accessible from inside the trailer.

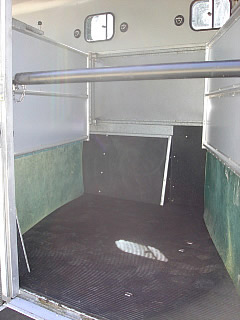

The sliding windows and optional roof vents provide a comfortable and safe environment for your horse, ensuring plenty of light and fresh air. Additional comfort is provided through thick rubber floor matting.

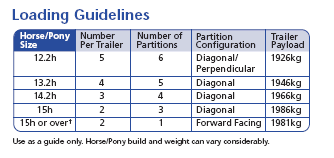

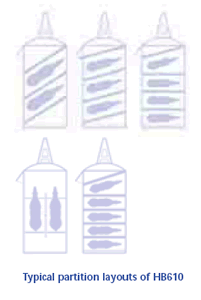

*Animals must not be carried adjacent to the groom’s door under any circumstances. Please refer to the partition layouts for guidance.
†The HB610XL front ramp is restricted in height to 1.9m (74”) and is therefore not suitable for front unloading of horses over 16.2 hands.
Specifications - HB610 |
| Dimension |
inches |
metres |
| Overall Width |
7' 7" |
2.30 |
| Overall Height |
9' 3" |
2.82 |
| Overall Length |
18' 10" |
5.74 |
| Internal Length (ramp to tapered front) |
13' 11" |
4.25 |
| Internal Height |
7' 7" |
2.30 |
| Internal Width (no partition ) |
6' 9 1/2" |
2.07 |
| Stall Width |
various |
various |
| Stall Length (min/max) |
various |
various |
| Breast/Breeching Bar Height (min / max) |
N/A |
N/A |
| Weight |
kg |
| Maximum Gross Weight |
3500 |
| Unladen Weight * |
1454 |
Dimensions and weights are approximate and given as a guide only.
* the unladen weight guide includes the many accessories included as standard with the Ifor Williams trailers. |
